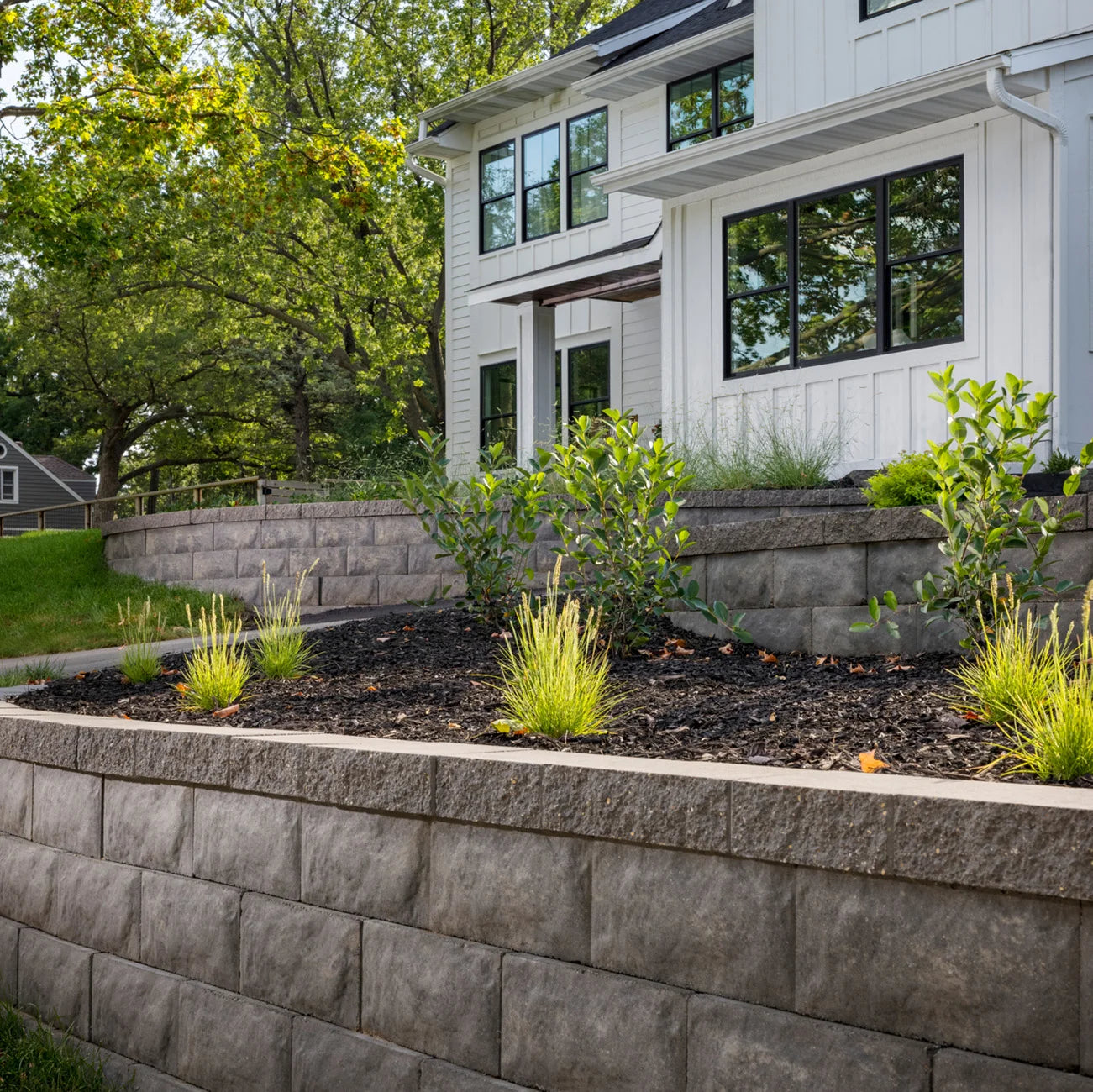

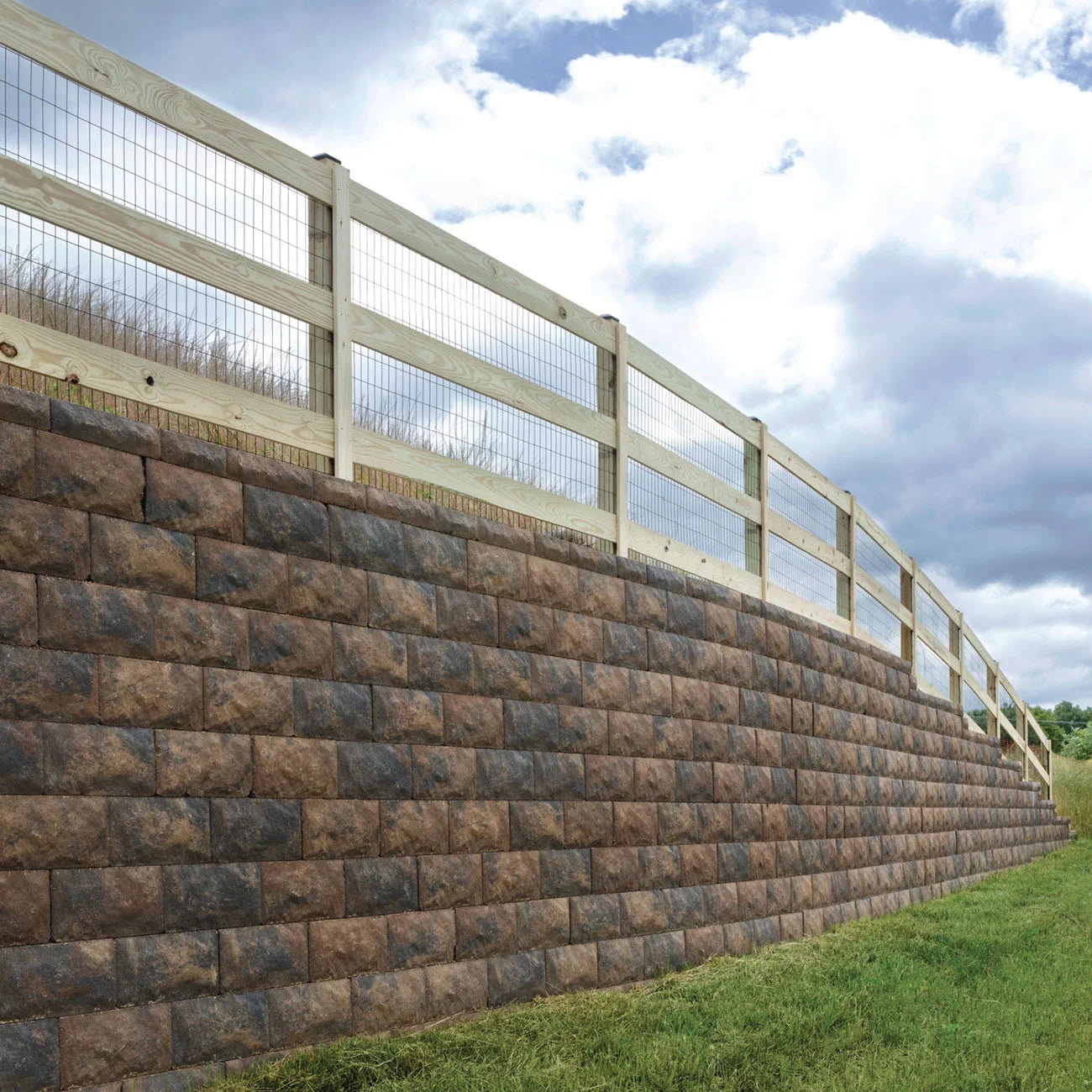

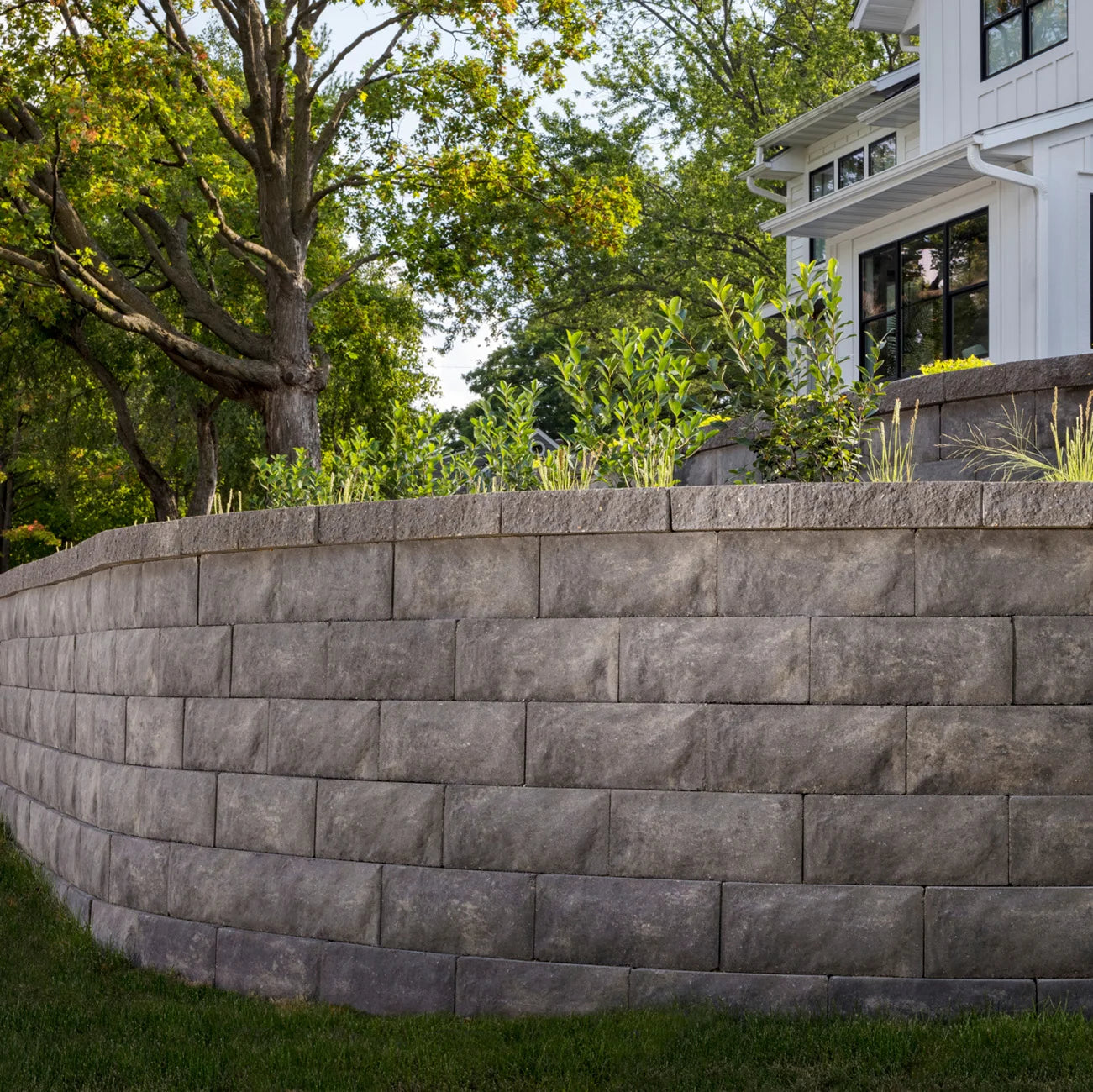

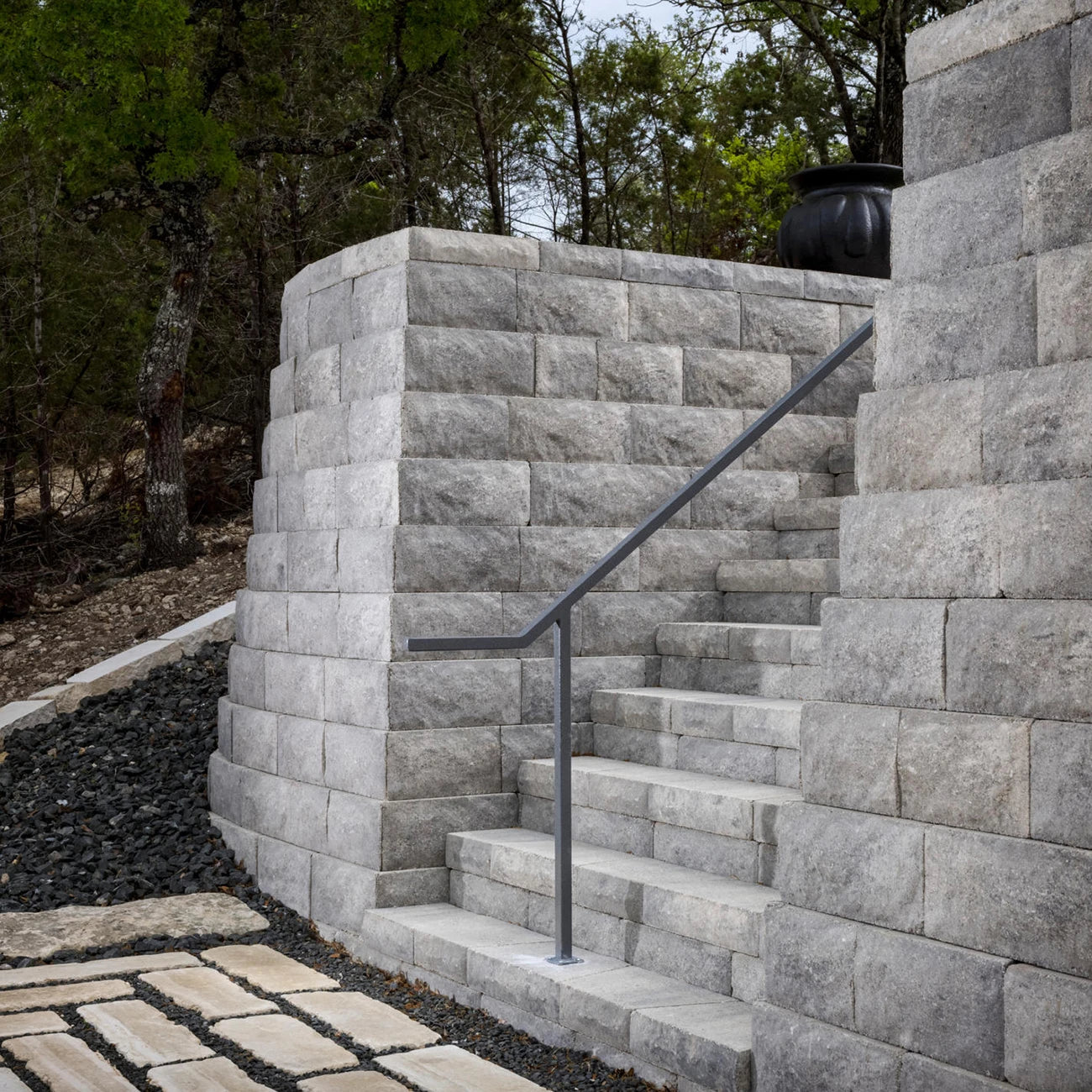

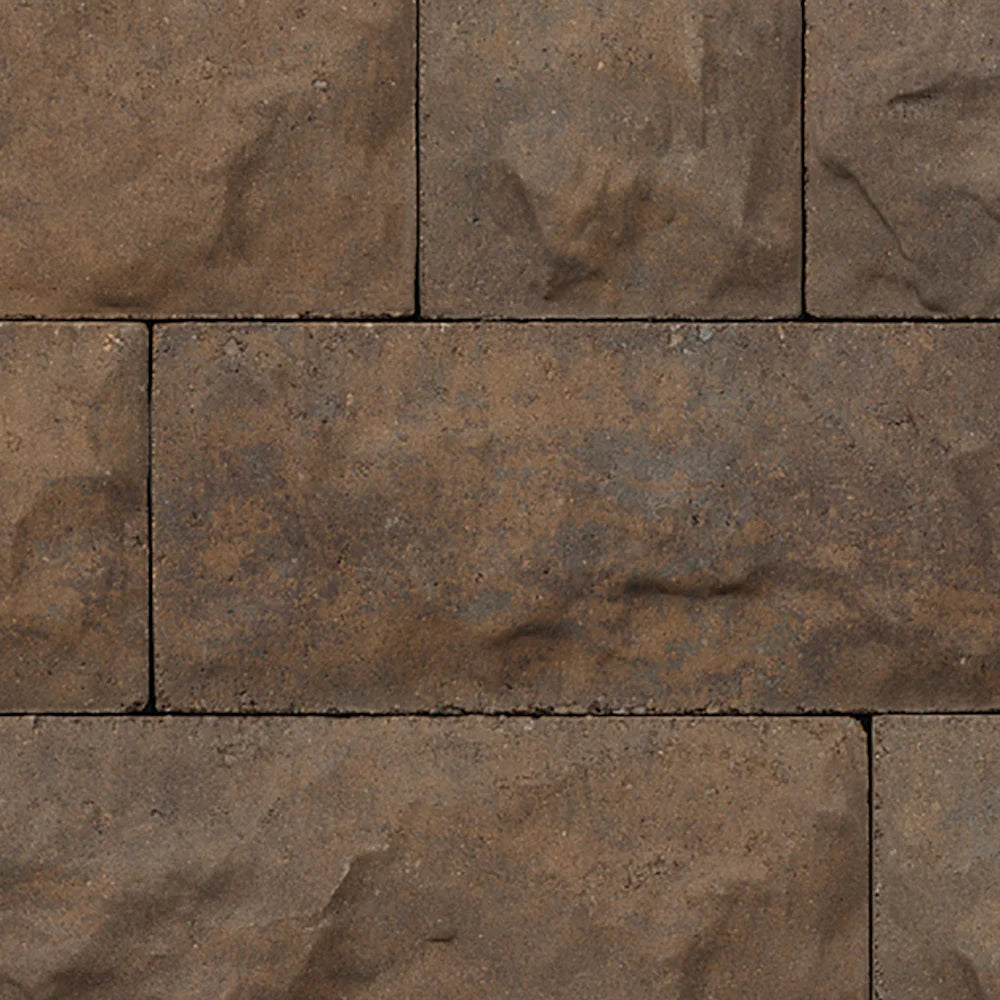

DIAMOND PRO PS QUARRIED FACE

Inspired by the look of natural, unearthed stone, the Diamond Pro^® PS Quarried Face pairs the time-tested strength of a Diamond Pro^® retaining wall system with the installation ease of a pin locator.

Features & Benefits:

• Pin system installation method.
• Large cores for ease in handling.
• Ease of installation with oversized pin aligning cores.
• Pin cores allow for multiple batter options.
• Build walls in excess of 50 feet when combined with geosynthetic reinforcement.
• One square foot of wall face per block.
• Gravity walls can be built up to 4 feet high, including the buried course, with 7.1 degree batter.
• Minimum outside radius, measured on the top course to the front of the units: 4 feet.
• Minimum inside radius, measured on the base course to the front of the units: 6 feet.
• Setback/System Batter: Near Vertical and 1″/7.1⁰; additional system batter can be created by alternating pin placement on each course of wall.
