DIAMOND PRO® PS SMOOTH FACE

 A refined, modern appearance with the strength of Diamond Pro Retaining Wall Systems.

Features & Benefits:

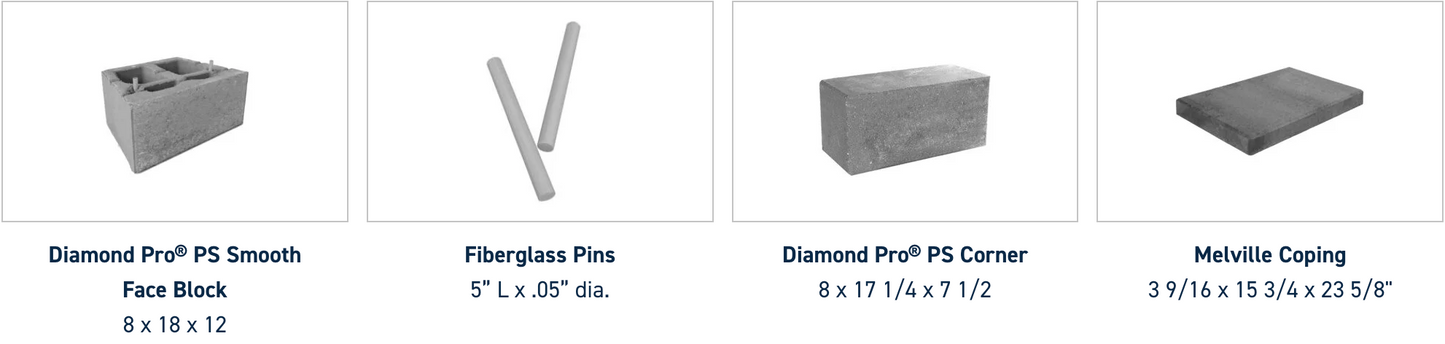

• Pin system installation method
• Large cores for ease in handling
• Ease of installation with oversized pin aligning cores
• Pin cores allow for multiple batter options
• Builds walls in excess of 50 feet when combined with geosynthetic reinforcement
• One square foot of wall face per block
• Gravity walls can be built up to 4 feet high, including the buried course, with 7.1 degree batter
• Minimum outside radius, measured on the top course to the front of the units: 4 feet
• Minimum inside radius, measured on the base course to the front of the units: 6 feet
• Setback/System Batter: Near Vertical and 1”/7.1º; additional system batter can be created by alternating pin placement on each course of wall

*For walls over 30 inches in height, soil reinforcement is generally necessary. A qualified engineer should be consulted for design and analysis of structures.
